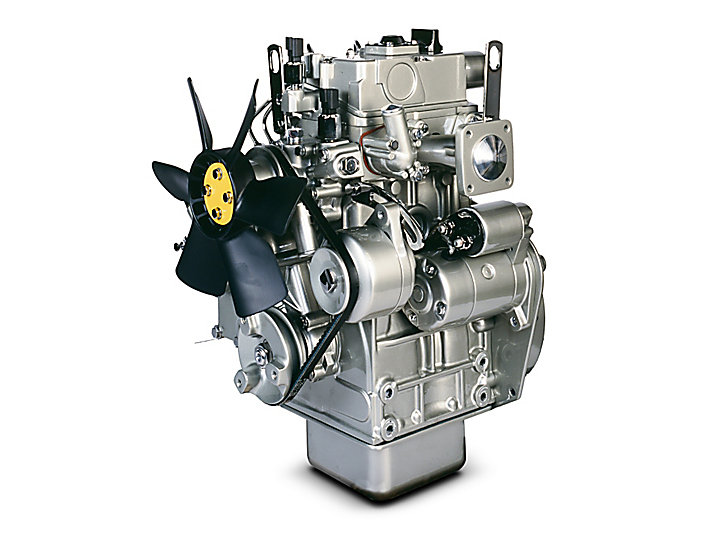

Perkins industrial diesel engine 402D-05
& Free Shipping
hot sale factory price 400 series 10.2 kW/13.7HP 8.2 kW/11HP 2 cylinder Industrial diesel Engine 402D-05 for Perkins
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
Products Description
|
Specification of Perkins diesel engine 402D-05
|
|
|
Rated Power
|
|
|
Maximum Power
|
10.2 kW/13.7 HP
|
|
Maximum Torque
|
29.7 Nm @ 2600 rpm/21.9 lb-ft @ 2600 rpm
|
|
Rated Power
|
2800-3600 rpm
|
|
Minimum Power
|
8.2 kW/11 HP
|
|
Emission Standard
|
|
|
Emission Standard
|
EPA Tier 4 Interim
|
|
Universal
|
|
|
Number of cylinders
|
Inline 2 cylinder
|
|
Circulation
|
4-stroke
|
|
Bore
|
67 mm
|
|
Stroke
|
72 mm
|
|
Displacement
|
0.5 L
|
|
Compression Ratio
|
23.5:1
|
|
Air inlet
|
Natural aspiration
|
|
combustion system
|
Indirect injection
|
|
Rotation
|
Anticlockwise facing flywheel
|
|
cooling system
|
liquid
|
|
Dimension
|
|
|
Length
|
406 mm
|
|
Width
|
371 mm
|
|
Height
|
523 mm
|
|
Weight
|
59 kg
|
Features:
The 400 Series offers competitively strong performance and excellent fuel economy. Manufactured with the right technology, these engines are reliable and durable, have a low cost of ownership, and are suitable for multiple markets.
The 400 Series has a wide power range that allows you to configure your solution to your specific machine, regional and market needs.
Powerbands overlap between models, and options are available to help optimize performance and functionality, as well as increase the value of the customer’s machine in the application.
We offer a one-year standard warranty on fixed speed engines and a two-year standard warranty on variable speed engines.
As an end user of the 400 Series, you also benefit from OGEM, the full range of power solutions provider, world-class product support and repair coverage programs.
These engines feature a compact design for a variety of applications including skid steers, mini excavators, wheel loaders, welders, lift platforms, light towers, small tractors, air compressors, lawn care machinery and material handling mechanical.
The six core engines in the 400 Series are configured to meet Stage IIIA/Tier 4 Interim or Stage IIIB/Tier 4 Final emissions standards, giving you flexibility to choose according to the market.
The 400 Series gives you a seamless power range of 8.2-50 kW (11-67 hp), including 2-, 3- and 4-cylinder models, designed with a serialized interface look. Available in a variety of ratings and configurations, the series can be customized to meet the most stringent requirements.
Through the selective use of indirect and direct injection fuel systems, OGEM is able to provide world-class engines with the benefits of improved performance and low noise.
