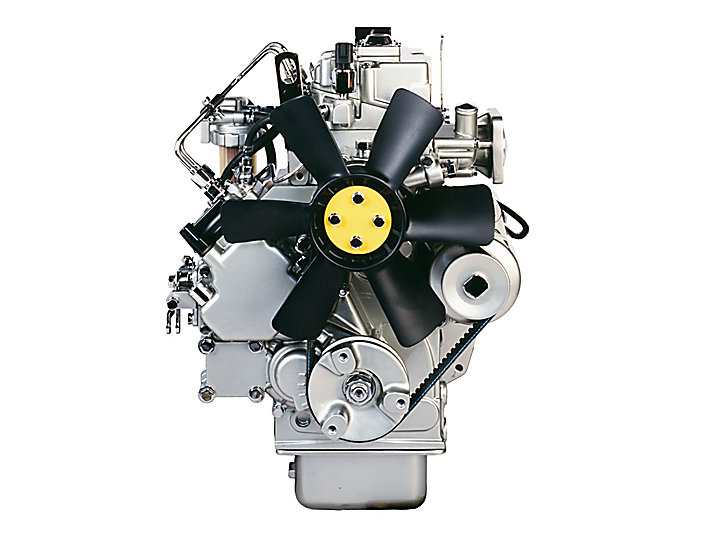

Perkins industrial diesel engine 402J-05

hot sale factory price 400 series 8.8 kW/11.8 HP 7.5 kW/10 HP 2 cylinder Industrial diesel Engine 402J-05 for Perkins

Your Diesel Engine Service Experts

  • Done Genuine or OEM Quantity
  • Done Global Warranty Service
  • Done Excellent Customer Service
  • Done Accept Customized
  • Visa Card
  • PayPal


Specification of Perkins diesel engine 402J-05
Rated Power
Maximum Power 8.8 kW/11.8 HP
Maximum Torque 29.7 Nm @ 2100 rpm/22 lb-ft @ 2100 rpm
Rated Power 3000 rpm
Minimum Power 7.5 kW/10 HP
Emission Standard
Emission Standard Stage V/EPA Tier 4 Final
General information
Number of cylinders Inline 2 cylinder
Circulation 4-stroke
Bore 67 mm
Stroke 72 mm
Displacement 0.5 L
Compression Ratio 23.5:1
Aspiration Natural aspiration
combustion system Indirect injection
Rotation Anticlockwise facing flywheel
cooling system liquid
Length 406 mm
Width 371 mm
Height 523 mm
Weight 57 kg


The 400 Series offers competitively strong performance and excellent fuel economy. Manufactured with the right technology, these engines are reliable and durable, have a low cost of ownership, and are suitable for multiple markets.
The 400 Series has a wide power range that allows you to configure your solution to your specific machine, regional and market needs.
Powerbands overlap between models, and options are available to help optimize performance and functionality, as well as increase the value of the customer’s machine in the application.
We offer a one-year standard warranty on fixed speed engines and a two-year standard warranty on variable speed engines.
As an end user of the 400 Series, you also benefit from OGEM, the full range of power solutions provider, world-class product support and repair coverage programs.
These engines feature a compact design for a variety of applications including skid steers, mini excavators, wheel loaders, welders, lift platforms, light towers, small tractors, air compressors, lawn care machinery and material handling mechanical.
The six core engines in the 400 Series are configured to meet Stage IIIA/Tier 4 Interim or Stage IIIB/Tier 4 Final emissions standards, giving you flexibility to choose according to the market.
The 400 Series gives you a seamless power range of 8.2-50 kW (11-67 hp), including 2-, 3- and 4-cylinder models, designed with a serialized interface look. Available in a variety of ratings and configurations, the series can be customized to meet the most stringent requirements.
Through the selective use of indirect and direct injection fuel systems, OGEM is able to provide world-class engines with the benefits of improved performance and low noise.
