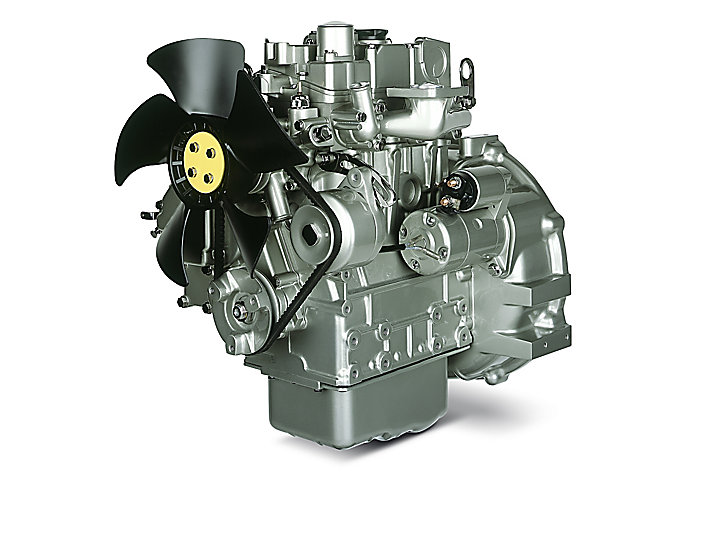

Perkins industrial diesel engine 403F-07
& Free Shipping
hot sale factory price 2200 rpm 8.8 kW 11.8 HP 403F-07 400 series Industrial 3 cylinder diesel engine for Perkins
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
| Specification of Perkins diesel engine 403F-07 | |
| Rated Power | |
| Maximum Power | 8.8 kW/11.8 HP |
| Maximum Torque | 41 Nm @ 2000 rpm/30.2 lb-ft @ 2000 rpm |
| Rated Power | 2200 rpm |
| Minimum Power | 8.8 kW/11.8 HP |
| Emission Standard | |
| Emission Standard | EPA Tier 4 Final |
| General information | |
| Number of cylinders | Inline 3 cylinder |
| Circulation | 4-stroke |
| Bore | 67 mm |
| Stroke | 72 mm |
| Displacement | 0.76 l |
| Compression Ratio | 23.5:1 |
| Aspiration | Natural aspiration |
| combustion system | Indirect injection |
| Rotation | Anticlockwise facing flywheel |
| cooling system | liquid |
| Dimension | |
| Length | 480 mm |
| Width | 371 mm |
| Height | 528 mm |
| Weight | 71 kg |
Features:
The 400 series engine models are available in a wide range of displacements from 0.5-2.2 liters. The 3-cylinder Model 403-07 is one of Perkins’ smallest generators, combining great performance with low operating costs and an extremely compact form factor. From a form factor package perspective, the 403-07 engine is ideal for small industrial applications. It comes with a simple and robust mechanical fuel system that is easy to install and maintain.
The 400 series diesel engines are compact in design for a variety of applications including skid steers, mini excavators, wheel loaders, welders, lift platforms, light towers, small tractors, air compressors, lawn care machinery and Material handling machinery.
The six core engines in the 400 Series are configured to meet Stage IIIA/Tier 4 Interim or Stage IIIB/Tier 4 Final emissions standards, giving you flexibility to choose according to the market.
The 400 Series gives you a seamless power range of 8.2-50 kW (11-67 hp), including 2-, 3- and 4-cylinder models, designed with a serialized interface look. Available in a variety of ratings and configurations, the series can be customized to meet the most stringent requirements.
Application for agricultural, construction, material handling, power generation, and industrial.
