Perkins industrial diesel engine 403J-11T

& Free Shipping

factory price 2400-2800 rpm hot sale 403J-11T 400 series 18.4 kW 24 HP Industrial 3 cylinder diesel engine for Perkins

Free shipping on orders over $50!

  • Done Satisfaction Guaranteed
  • Done No Hassle Refunds
  • Done Secure Payments
GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
Category: Tags: , ,

Description

Specification of diesel engine 403J-11T
Rated Power
Maximum Power 18.4 kW/24 HP
Maximum Torque 86 Nm @ 1600 rpm/63.4 lb-ft @ 1600 rpm
Rated Power 2400-2800 rpm
Minimum Power 18.4 kW/19.7 HP
Emission Standard
Emission Standard Stage V、Tier 4 Final
General information
Number of cylinders Inline 3 cylinder
Circulation 4-stroke
Bore 77 mm
Stroke 81 mm
Displacement 1.1 l
Compression Ratio 22.1:1
Aspiration turbocharged
combustion system Indirect injection
Rotation Anticlockwise facing flywheel
cooling system liquid
Dimension
Length 500 mm
Width 513 mm
Height 588 mm
Weight 108 kg

Features:

The 400J series was developed according to our market. The 1.1-liter three-cylinder engine complements the compelling 400 Series lineup, offering customers an ultra-compact, lightweight engine option while maintaining all the customer benefits of the rest of the range. The 400 Series engines continue to set new standards in the compact engine market. This is another of Aoright’ leading line of diesel engines, developed in partnership with customers to meet their needs in the construction, material handling, agriculture/turf, generator set and compressor markets. Up to 500 hours of service intervals, a two-year standard warranty, low noise and harshness, and a wide range of options make the 400 Series a complete solution for compact power needs. The 403J-11 is a very quiet 1.13 liter unit that offers impressive performance and low operating costs in a small and efficient package, ideal for a variety of off-road applications.
The 400 series diesel engines are compact in design for a variety of applications including skid steers, mini excavators, wheel loaders, welders, lift platforms, light towers, small tractors, air compressors, lawn care machinery and Material handling machinery.
The six core engines in the 400 Series are configured to meet Stage IIIA/Tier 4 Interim or Stage IIIB/Tier 4 Final emissions standards, giving you flexibility to choose according to the market.
The 400 Series gives you a seamless power range of 8.2-50 kW (11-67 hp), including 2-, 3- and 4-cylinder models, designed with a serialized interface look. Available in a variety of ratings and configurations, the series can be customized to meet the most stringent requirements.
Application for agricultural, construction, material handling, power generation, and industrial.
Please feel free to contact

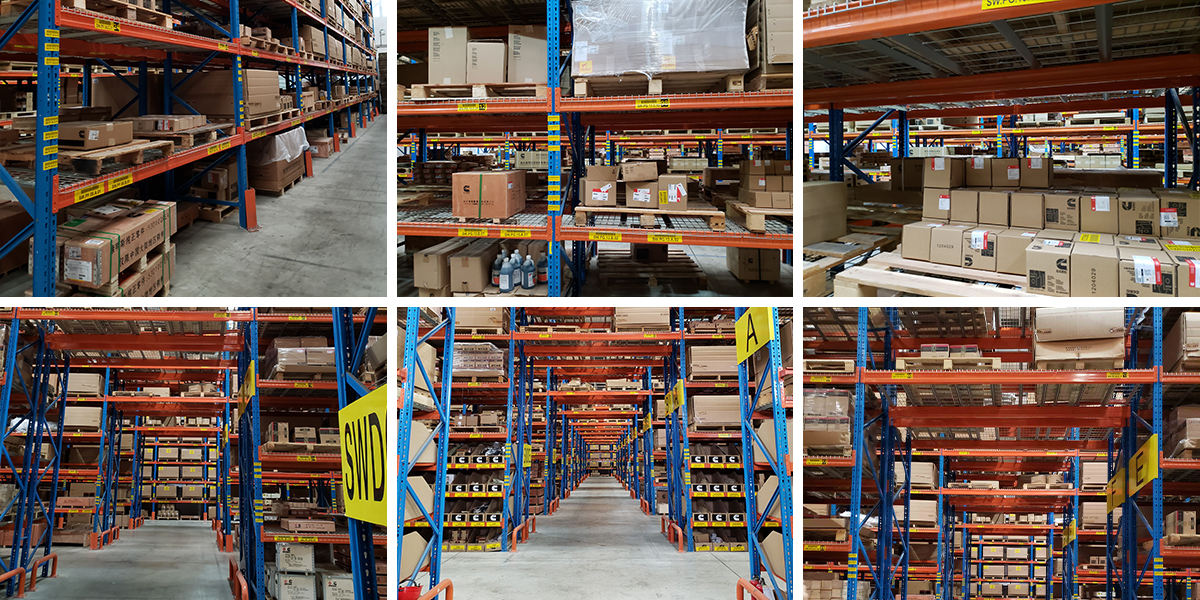

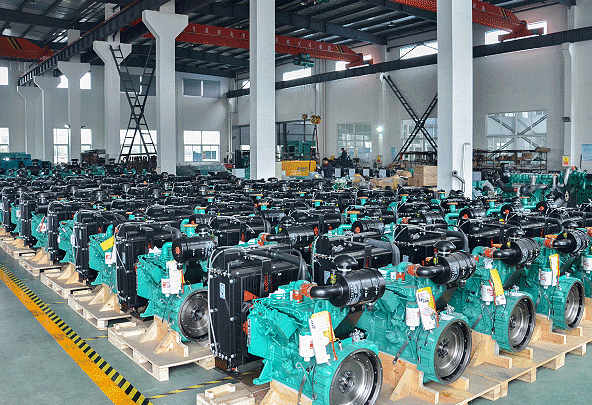

Warehouse

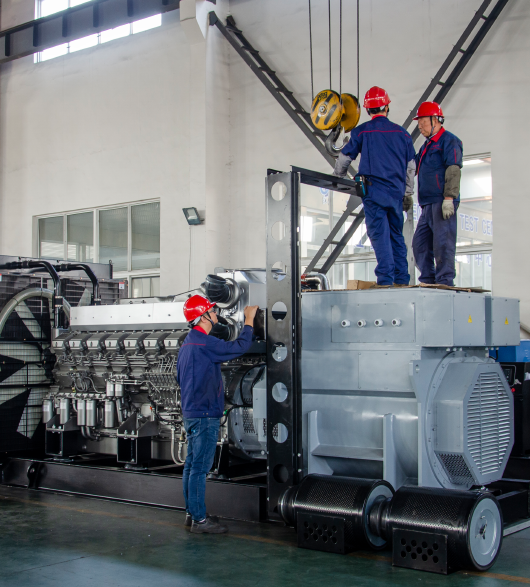

Our team
Our Service

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.

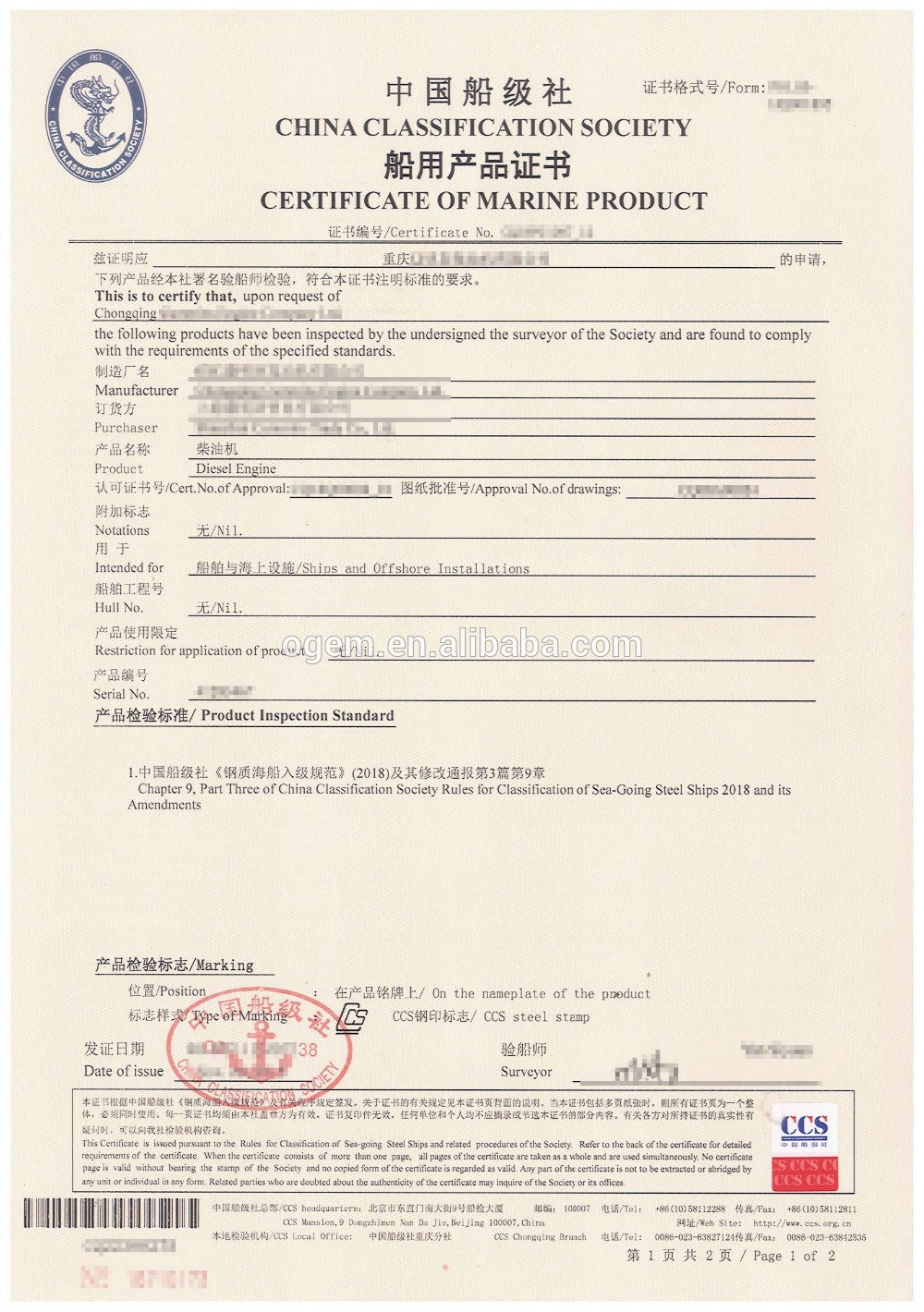

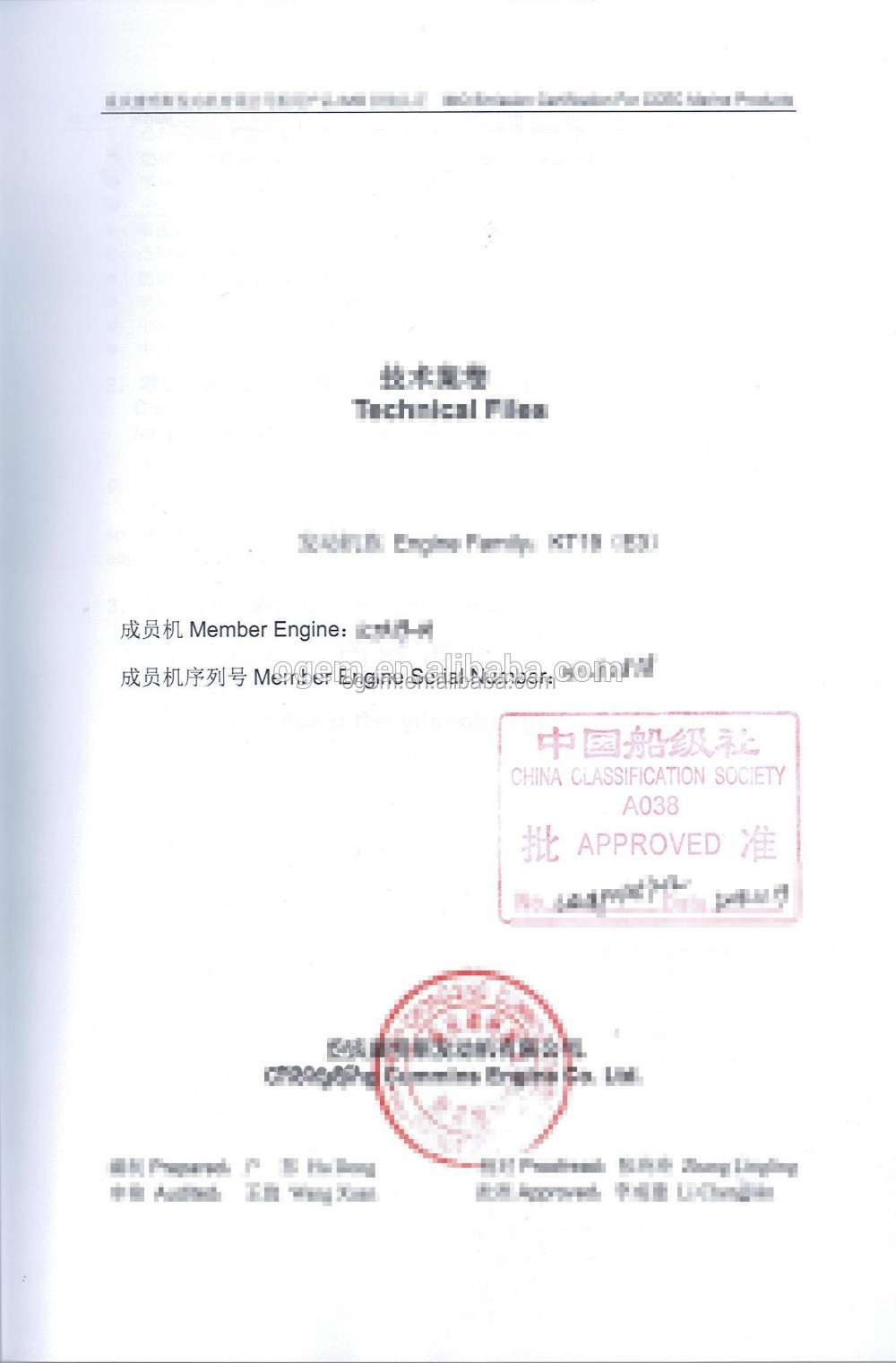

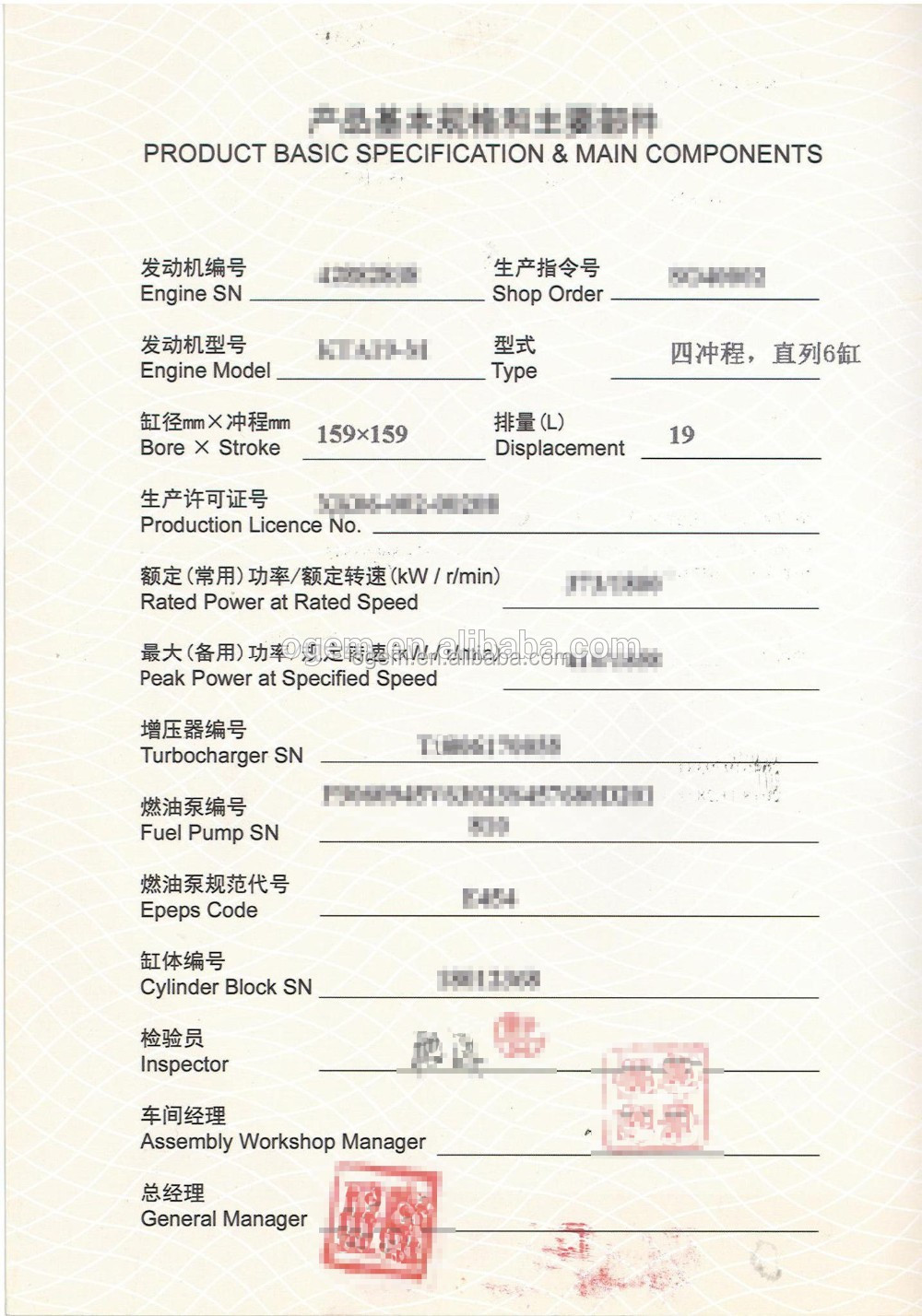

Certifications

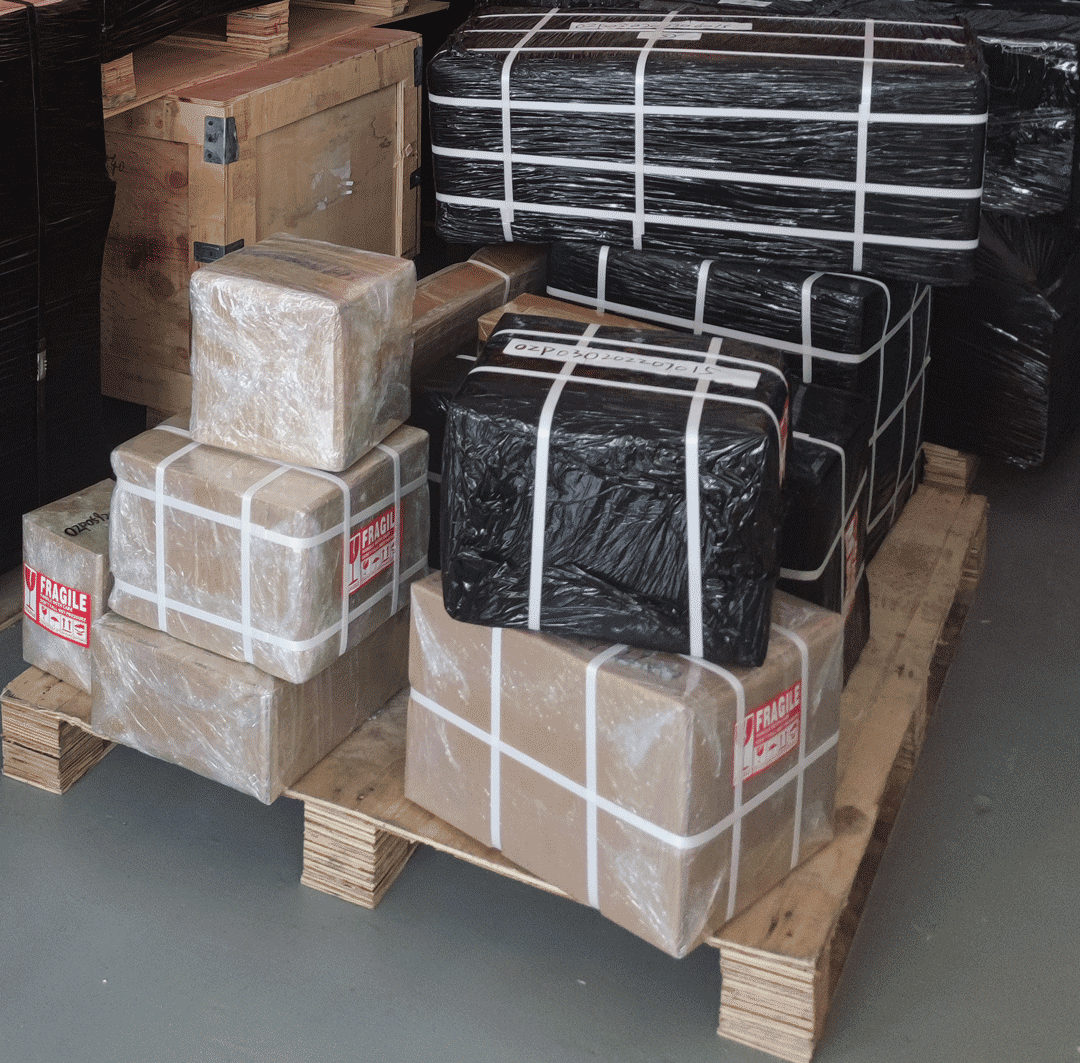

Packing & Delivery
Packing

Acoording to your ordered goods, we offer three types of outer packing as following. About package of engine parts, we can use neutral packing and original packing in accordence with your requests.(If have other requests, pls negotiate with supplier)

Wooden Case（Not solid wood）

professional carpenter master made every wooden cases according to the products.

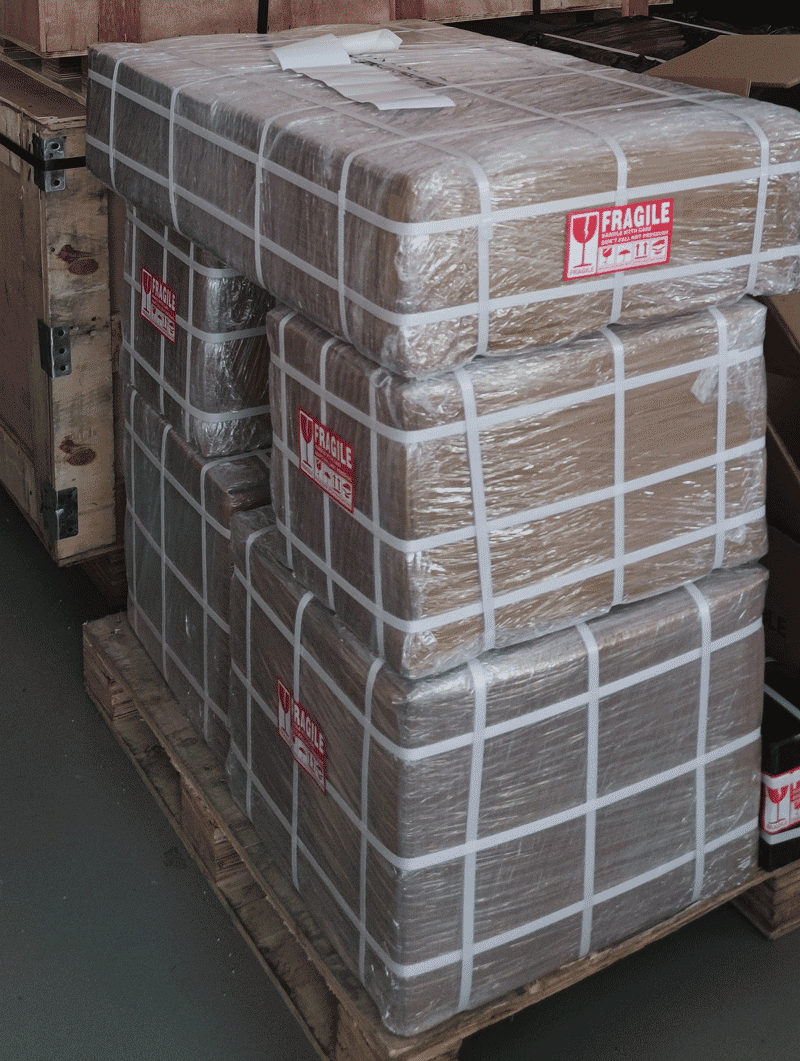

Carton（Thin film on surface）

Every cartons cover thin film(transparent or non-transparent),waterproof,And use tapes to fixed.

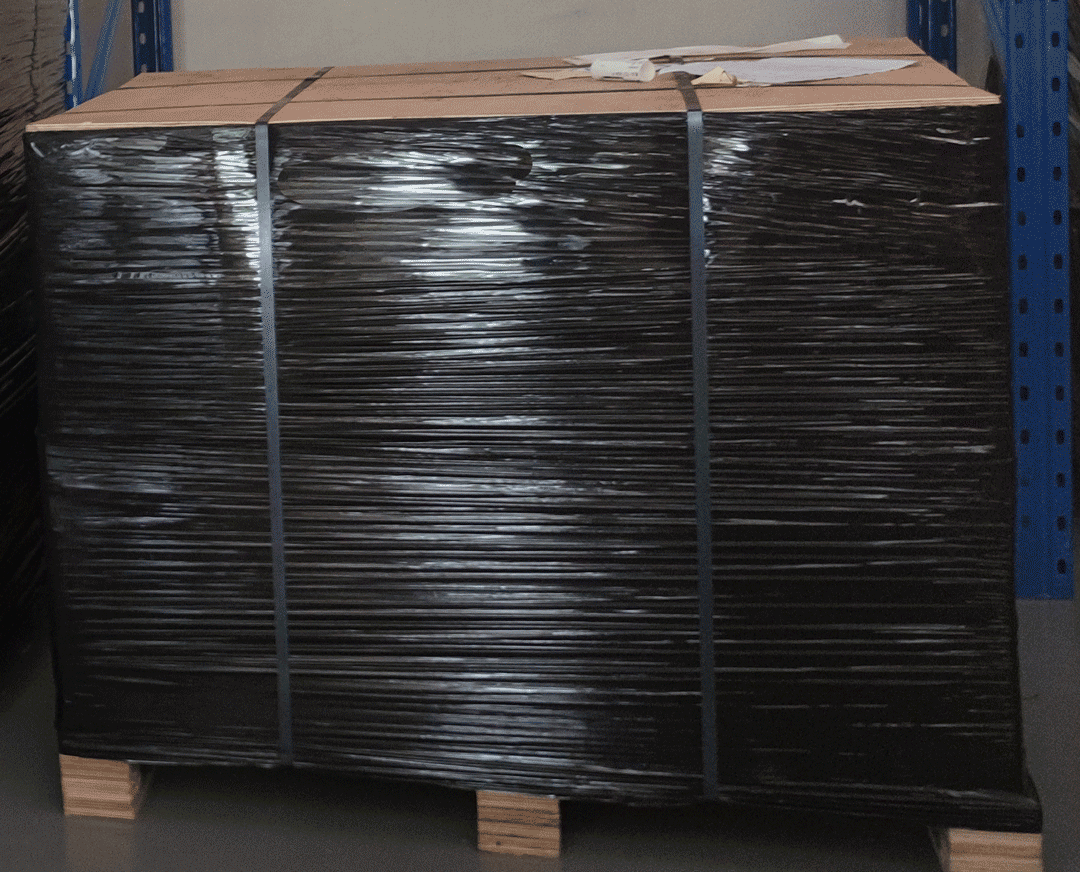

Wooden Pallet（Not solid wood）

All products put on one wooden pallet and cover non-transparent thin film and then fixed by iron strip.
Delivery
According to your requests, we provide three shipping way as followed. We have some long-term cooperated forwarders. So don’t worry, we can help you to handle everythings.
Recommended Transportation Selections
By Express
By Air
By Sea
Suitable for <50kg
Fast: 3-15 days
High shipping costDoor to door service
Suitable for >50kg
Fast: 5-25 days
Lower than express costAirport to airport service
Door to door service
Professional broker needed
Suitable for >50kg
Fast: 5-25 days
Lower than express costAirport to airport service
Door to door service
Professional broker needed
FAQ
Q1.What is your company major products ?
A:Our company products are diesel engine assy and parts for 400 series,1100 series,1200 series,2200 series,2400 series,2500 series,2800 series…


Q2.What is the MOQ ?
A:Normally we can supply any quantity if we have in stock.

Q3.What is your payment term ?
A:We accept T/T,Alibaba Assurance,Western Union,Paypal,MoneyGram,L/C,D/A,D/P,etc.

Q4.What is the packing ?
A:Wooden case,Carton case and Neutral packing,if you want to put your logo on the packing,we will do it after get your anthorization letter.

Q5.When can you deliver products after payment ?
A:By Express,ususlly might take 3-4 days;By Air,ususlly take 7-9 days;By Sea,usually take 1-2 months.

Q6.What can you do to complete order perfectly ?
A:In the beginning,We will communicate with clients in details to understand what they need.Before packing,We will check the products and send photos to clients.After confirmation,We will packing products well to avoid damage.Once we get tracking number,We will send it to customer and keep contact in with clients.
